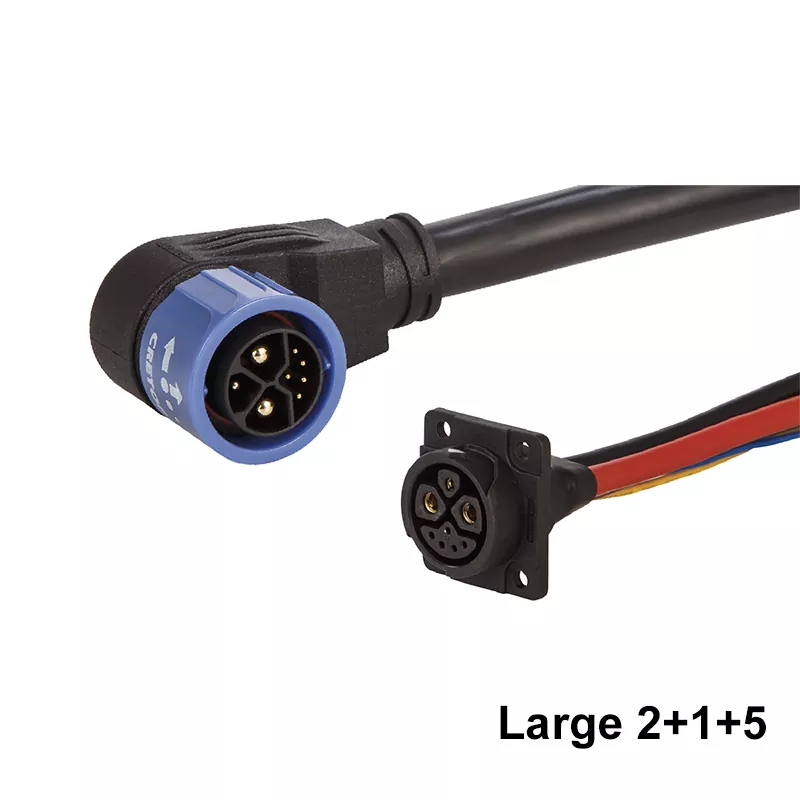

2+1+5Pin E-Motorcycle Connector

CRETOP® is the manufacturer of 2+1+5Pin E-Motorcycle Connector in China, we have more than 10 years experience in the connectors field. All of our Connectors have nice price and good quality. We can provide OEM, ODM service, hope to become your partner in China.

Send Inquiry

Product Description

CRETOP® is one of Chinese professional 2+1+5Pin E-Motorcycle Connector suppliers. CRETOP® 2+1+5Pin E-Motorcycle Connector can provide charging and discharging electric connection for E-motorcycles. The CRETOP® 2+1+5Pin E-Motorcycle Connector has 3 years warranty and IP grade is IP67, to promise the quality and lifespan.

CRETOP 2+1+5Pin E-Motorcycle Connector use CRETOP push-lock locking mechanism, can plug in & out easy and smoothly, with audible click when locking engaged. The materials of CRETOP 2+1+5Pin E-Motorcycle Connector complies with RoHS standard. CRETOP can customize according to customers' drawings or samples.

CRETOP 2+1+5Pin E-Motorcycle Connector Specification

Model No.:	Large 2+1+5
Mating Cycle	≥3000 Times
Pullout Force:	<100N
Wire processing	Weld
Rating Voltage	110V DC
Rating Current	2(50A) + 1(15A) + 5(5A)
Peak Current	Power 75A 30S
Withstand Voltage	1500V AC
Insulation Resistance	>100MΩ
Operating Temperature	-40°C~105°C
IP Rating	IP67
Salt Spray	72h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
Conductor	Copper Alloy, Gold Plated
