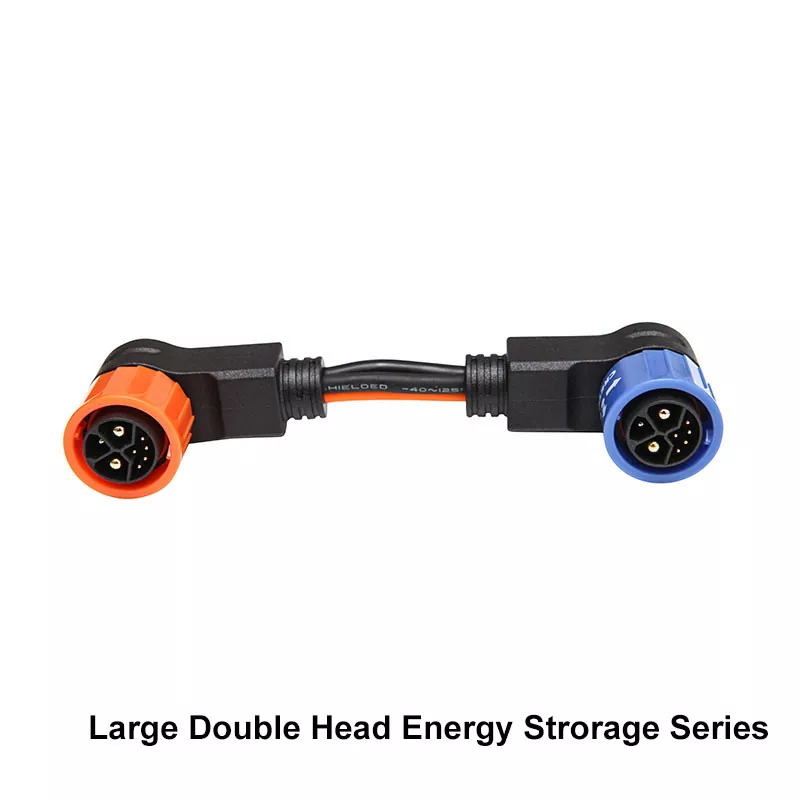

2+4Pin Double Head Energy Storage Connector

CRETOP is one of the famous China 2+4Pin Double Head Energy Storage Connector manufacturers and suppliers. Our factory specializes in manufacturing of Energy Storage Connector. Founded in 2011, Ningbo CRETOP Electrical Appliance Co., LTD. is a professional connector company in the coastal city of Ningbo. Export to the Southeast Asia, Europe, North America, many years of long-term cooperation.

Send Inquiry

Product Description

High quality CRETOP 2+4Pin Double Head Energy Storage Connector made in China. CRETOP 2+4Pin Double Head Energy Storage Connector can provide charging and discharging electric connection for energy storage battery. CRETOP can customize according to customers' drawings or samples. You can rest assured to buy 2+4Pin Double Head Energy Storage Connector

from us and we will offer you the best after-sale service and timely delivery.

2+4Pin Double Head Energy Storage Connector Specifications

Model No.	Large Double-Head Energy Storage Series 2+4
Mating Cycle	≥3000 Times
Pullout Force	<100N
Wire processing	Weld
Rating Voltage	110V DC
Rating Current	2(50A) + 1(15A) + 5(5A); 2(50A) + 4(5A)
Peak Current	Power 75A 30S
Withstand Voltage	1500V AC
Insulation Resistance	>100MΩ
Operating Temperature	-40°C~105°C
IP Rating	IP67
Salt Spray	72h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
Conductor	Copper Alloy, Gold Plated
