2+4Pin E-Motorcycle Battery Charging Connector

CRETOP® China 2+4Pin E-Motorcycle Battery Charging Connector factory with ISO9001 certificate, national high-tech enterprise. We have been specialized in 2+4Pin E-Motorcycle Battery Charging Connector for many years. Our products cover most of Asia, European, America markets. We regularly develop new products to meet customer needs, to provide customers with the latest, most comprehensive and most reliable E-Motorcycle Connector.

Send Inquiry

Product Description

The CRETOP® 2+4Pin E-Motorcycle Battery Charging Connector is the latest invention of high-quality UL TUV CQC CE IP67 and comes with a 3-5 year warranty in China. High quality that can be used normally in harsh environments. The CRETOP 22+4Pin E-Motorcycle Battery Charging Connector has three points push-lock locking mechanism, can plug in & out easy and smoothly. At the same time, the 2+4Pin E-Motorcycle Battery Charging Connector's locking nut is with hand grip, can be easy accessed. You can also choose different locking rings. Anti touch technology makes the connector use more safe. CRETOP® 2+4Pin E-Motorcycle Battery Charging Connector is compact, fully reduce the bending space.

2+4Pin E-Motorcycle Connector Specifications

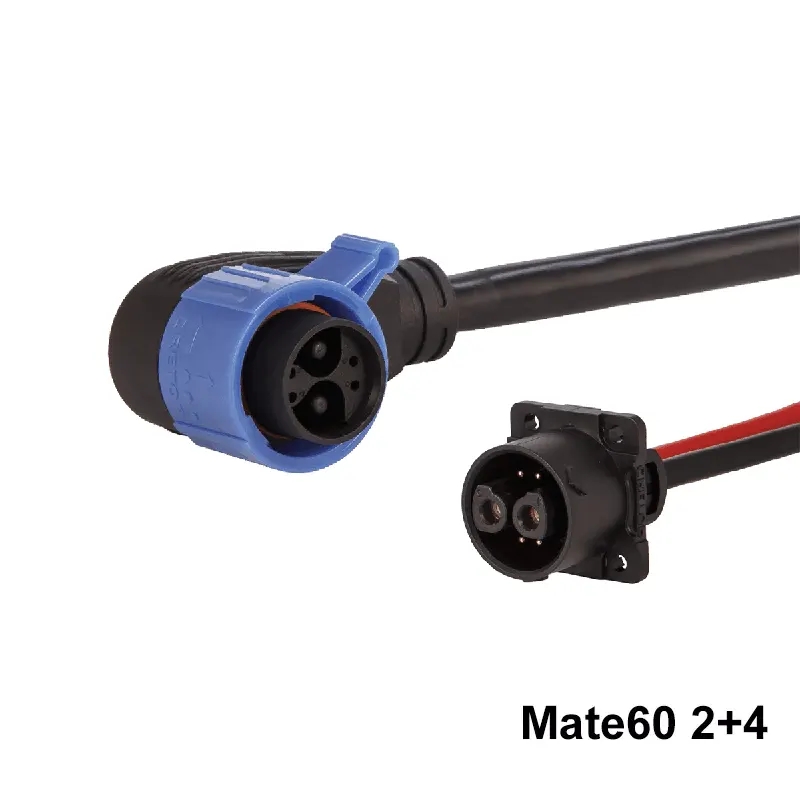

Model No.:	Mate60 2+4
Mating Cycle:	≥3000 Times
Pullout Force:	<100N
Wire processing:	Crimping

Rating Voltage:	80V DC
Rating Current:	50A
Peak Current:	Power 80A 60S
Withstand Voltage:	1500V AC
Insulation Resistance:	>100MΩ

Operating Temperature:	-40°C~105°C
IP Rating:	IP67 Mated & Unmated
Salt Spray:	48h
Flammability Rating:	UL94V-0

Shell:	High strength thermoplastic resin
Sealing:	Silicone Rubber
Conductor:	Copper Alloy, Sliver/Gold Plated
