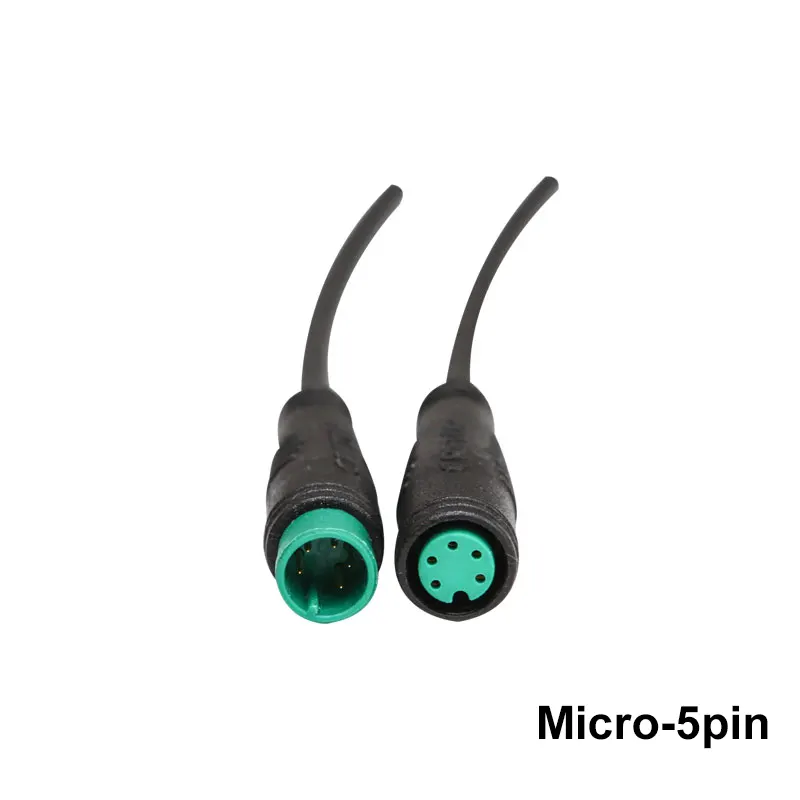

5Pin Signal Connector

CRETOP is a professional 5Pin Signal Connector manufacturer in China since 2011, has specialized in manufacturing various of E2W connector and outdoor Led connector, as well as providing quality industrial connector for the world. We are committed to providing high quality product at a competitive price and backed up with superior service. Welcome to inquiry for our 5Pin Signal Connector.

Send Inquiry

Product Description

CRETOP is a professional 5Pin Signal Connector supplier. 5Pin Signal Connector suitable for harsh environments which can plug in and out quickly. Easy insertion with reliable retention.

The size of 5Pin Signal Connector is very compact, at the same time, this connector use overmolding structure, is concise & flexible. You can rest assured to buy 5Pin Signal Connector from our factory and we will offer you the best after-sale service and timely delivery.

5Pin Signal Connector Specifications

Model No.	Micro 2-6Pin
Mating Cycle	≥200 Times
Pullout Force	>30N
Wire processing	Weld
Rating Voltage	48V AC, 60V DC
Rating Current	2A
Withstand Voltage	500V AC
Insulation Resistance	>20MΩ
Operating Temperature	-25°C~80°C
IP Rating	IP67
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	TPU
Conductor	Copper Alloy, Gold Plated
Wire Gauge	2-4Pin 24AWG/0.2mm²,5-6Pin 26AWG/0.14mm²
