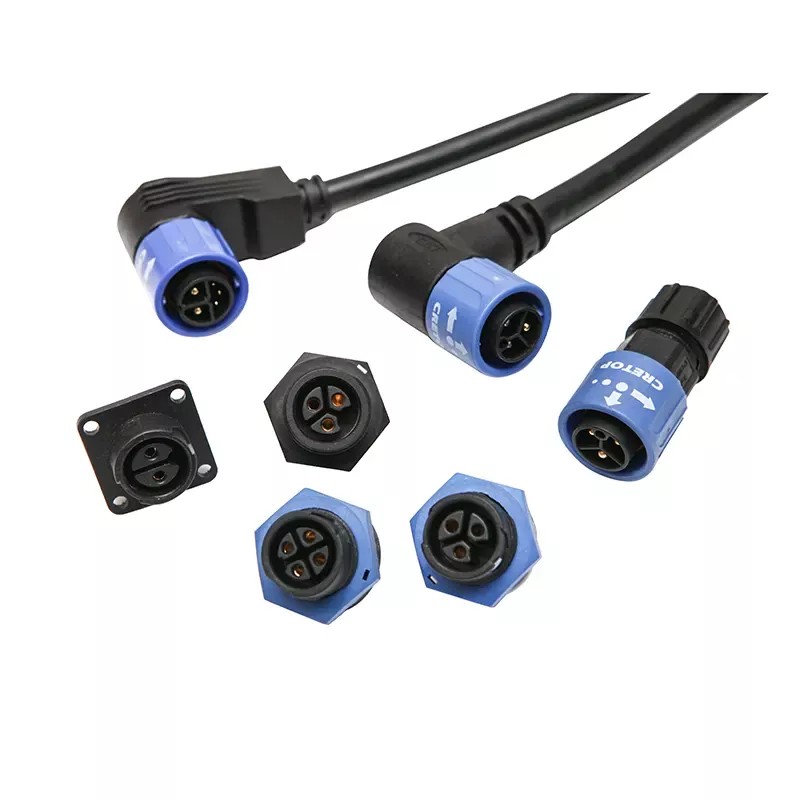

E-Motorcycle Charing and Discharging Connector
You can rest assured to buy E-Motorcycle Charing and Discharging Connector from CRETOP® factory and we will offer you the best after-sale service and timely delivery.
Send Inquiry
E-Motorcycle Charging and Discharging Connector manufactured by CRETOP® located in China. CRETOP® E-Motorcycle Charing and Discharging Connector locking mechanism, can be locked securely, with audible click when locking engaged. At the same time, with small shape, E-Motorcycle Charging and Discharging Connector can fully reduce the bending space. We use strengthen signal pin in this E-Motorcycle Charging and Discharging Connector, which has strong inserting resistance and bending resistance. Our E-Motorcycle Charging and Discharging Connector has UL, CE, CQC , RoHS certificate.
E-Motorcycle Charging and Discharging Connector Specifications
| Model No. | Middle 3Pin |
| Mating Cycle | ≥2000 Times |
| Pullout Force | <100N |
| Wire processing | Weld |
| Voltage Rating | 250V DC |
| Current Rating | 20A |
| Withstand Voltage | 1500V AC |
| Insulation Resistance | >100MΩ |
| Operating Temperature | -40°C~105°C |
| IP Rating | IP67 |
| Salt Spray | 48h |
| Flammability Rating | UL94V-0 |
| Shell | High strength thermoplastic resin |
| Sealing | Silicone Rubber |
| Conductor | Copper Alloy, Gold Plated |
| Cable | Max 14AWG/2.0mm2 |
