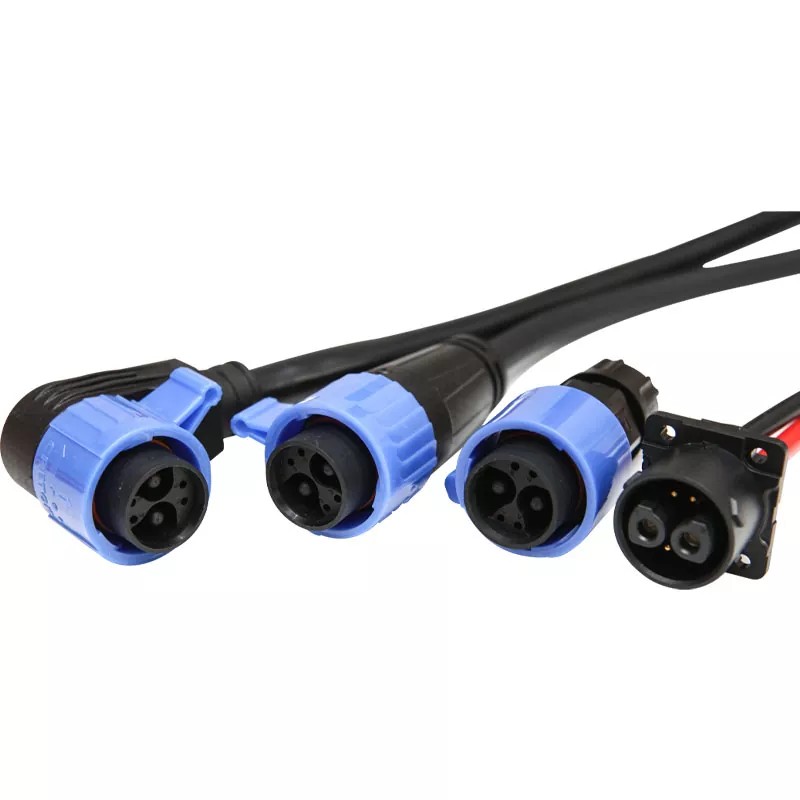

The CRETOP® 2+4Pin E-Motorcycle Connector is the latest invention of high-quality UL TUV CQC CE IP67 and comes with a 3-5 year warranty in China. High quality that can be used normally in harsh environments. The CRETOP 2+4Pin E-Motorcycle Connector has three points push-lock locking mechanism, can plug in & out easy and smoothly. At the same time, the 2+4Pin E-Motorcycle Connector’s locking nut is with hand grip, can be easy accessed. You can also choose different locking rings. Anti touch technology makes the connector use more safe. CRETOP® 2+4Pin E-Motorcycle Connector is compact, fully reduce the bending space.
2+4Pin E-Motorcycle Connector Specifications
Model No.:
| Mate60 2+4
|
Mating Cycle:
| ≥3000 Times
|
Pullout Force:
| <100N
|
Wire processing:
| Crimping
|
Rating Voltage:
| 80V DC
|
Rating Current:
| 50A
|
Peak Current:
| Power 80A 60S
|
Withstand Voltage:
| 1500V AC
|
Insulation Resistance:
| >100MΩ
|
Operating Temperature:
| -40°C~105°C
|
IP Rating:
| IP67 Mated & Unmated
|
Salt Spray:
| 48h
|
Flammability Rating:
| UL94V-0
|
Shell:
| High strength thermoplastic resin
|
Sealing:
| Silicone Rubber
|
Conductor:
| Copper Alloy, Sliver/Gold Plated
|
