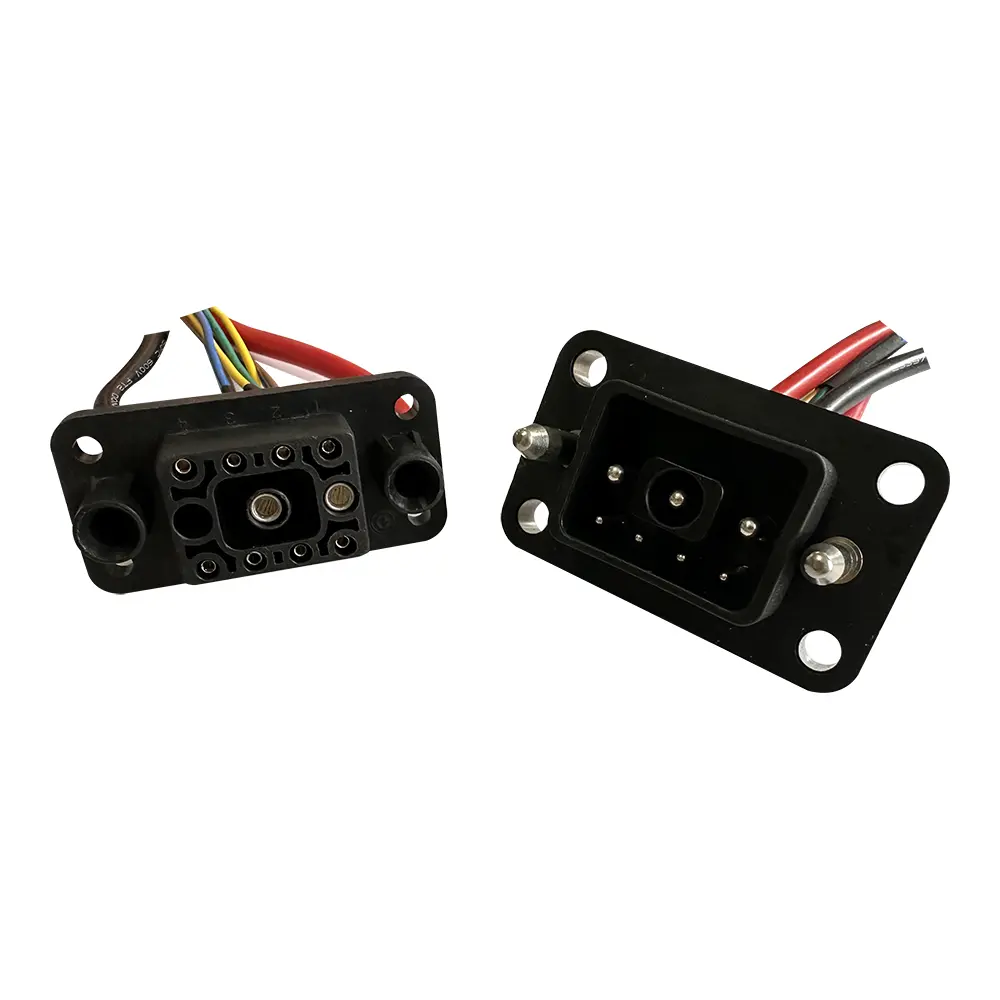

E-Motorcycle Battery Swapping Floating Connector

CRETOP is a well-known E-Motorcycle Battery Swapping Floating Connector manufacturer in China,the Li Battery Connector manufacturer and Battery Swapping Floating Connector supplier in China. The high quality E-Motorcycle Battery Swapping Floating Connector produced by China CRETOP factory are of complete size and high quality, which can be used for E-motorcycle, E-bike, E-scooter, outdoor LED lighting and industrial automation.

Model:FD06 2+10

Send Inquiry

Product Description

CRETOP is a large-scale of Battery Swapping Floating Connector factory in China. Battery Swapping Floating Connector can provide electric connection for E-motorcycle swapping battery quickly. The terminal of Battery Swapping Floating Connector is 3.6mm. Torsion spring connection technology in the Battery Swapping Floating Connector improves current transmission capacity, which is high reliability. 1mm self-floating function to compensate for the gap between the battery and the E-motorcycle. We maintain long-term and stable cooperative relations with many customers from all over the world, who are the experiencers and supporters of our products and services, and we look forward to one day you will become one of them.

E-Motorcycle Battery Swapping Floating Connector

Model No.	FD06 2+10
Mating Cycle	≥5000 Times
Pullout Force	<100N
Wire processing	Crimping / Weld
Rating Voltage	72V DC
Rating Current	50A 5A
Peak Current	Power 60A 30S
Withstand Voltage	1500V AC
Insulation Resistance	>200MΩ
Operating Temperature	-45°C~105°C
IP Rating	IP67
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
Conductor	Copper Alloy, Sliver/Gold Plated
Guide post	stainless steel
