Screw Type Waterproof Connector 2 Pin 3 Pin
  • Air ProScrew Type Waterproof Connector 2 Pin 3 Pin
  • Air ProScrew Type Waterproof Connector 2 Pin 3 Pin

Screw Type Waterproof Connector 2 Pin 3 Pin

CRETOP is a leading manufacturer and exporter of 2+3Pin E-Motorcycle Connector, established in 13 years and has more than 30 product categories. All E2W connectors is made of the best materials; quality is strictly controlled one by one before delivery, and a comprehensive quality control system is established according to ISO 9001. Our export markets include Southeast Asia, North America, Europe, ect.

Send Inquiry

Product Description

We emphasize advancement and introduce new products and solutions into the market each year for Screw Type Waterproof Connector 2 Pin 3 Pin, We look ahead to receiving your enquires quickly and hope to have the chance to get the job done together with you inside the future. Welcome to get a seem at our organization. Screw Type Waterproof Connector 2 Pin 3 Pin Wire Connector, Waterproof Connector, Cable Connector, Hard work to keep making progress, innovation in the industry, make every effort to first-class enterprise. We try our best to build the scientific management model, to learn abundant expert knowledge, to develop advanced production equipment and production process , to create the first-call quality merchandise, reasonable price , high quality of service , quick delivery , to present you create new value .

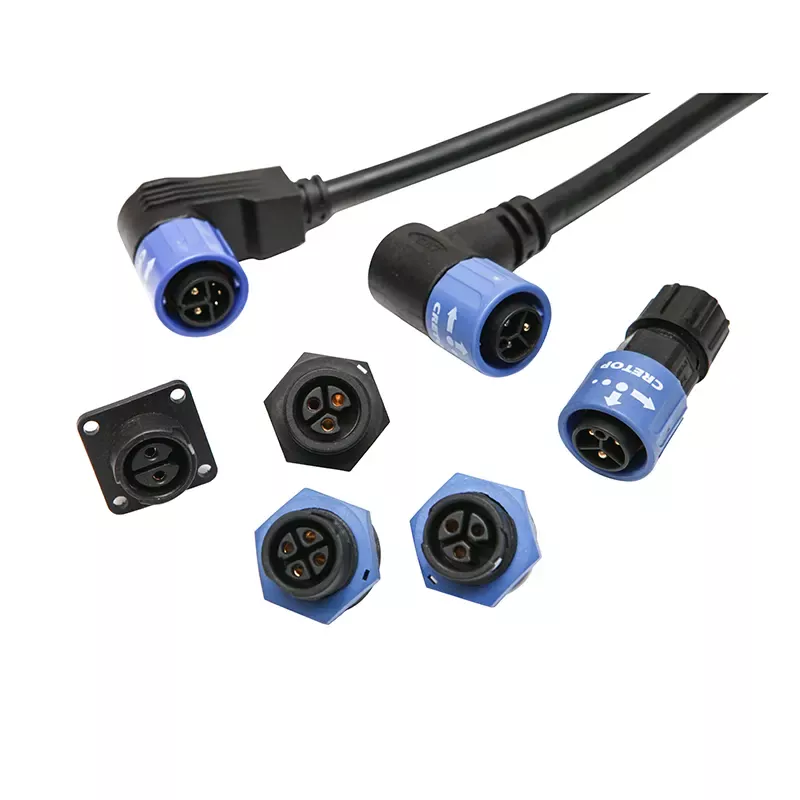

CRETOP 2+3Pin E-Motorcycle Connector has a large scale in China. CRETOP 2+3Pin E-Motorcycle Connector is power & signal wires combination. This 2+3Pin E-Motorcycle Connector use CRETOP PUSH LOCK locking mechanism, can be locked securely, with audible click when locking engaged.

Insertion in place with “click” tone. Besides, with small shape, CRETOP 2+3Pin E-Motorcycle Connector can fully reduce the bending space. Our CRETOP 2+3Pin E-Motorcycle Connector has UL, CE, CQC , RoHS certificates.

2+3Pin E-Motorcycle Connector Specifications

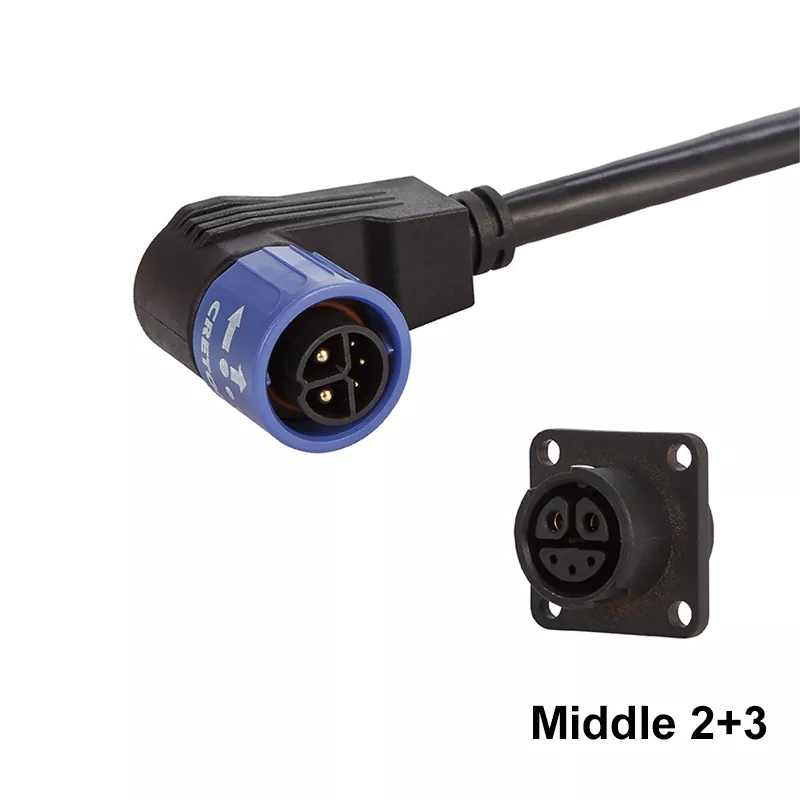

Model No.

Middle 2+3

Mating Cycle

≥2000 Times

Pullout Force

<100N

Wire processing

Weld

Rating Voltage

250V DC

Rating Current

20A

Withstand Voltage

1500V AC

Insulation Resistance

>100MΩ

Operating Temperature

-40°C~105°C

IP Rating

IP67 Mated

Salt Spray

48h

Flammability Rating

UL94V-0

Shell

High strength thermoplastic resin

Sealing

Silicone Rubber

Conductor

Copper Alloy, Gold Plated

Wire Gauge

Max 14AWG/2.0mm²


Hot Tags: Wire Connector, Waterproof Connector, Cable Connector
