Waterproof Motor Connector

CRETOP is a leading manufacturer, supplier and exporter of Waterproof Motor Connector in China. We can provide product design optimization, high performance and competitive prices. Of course, also indispensable is our perfect after-sales service. If you are interested in our Waterproof Motor Connector, you can consult us now, we will reply to you in time.

Send Inquiry

Product Description

Waterproof Motor Connector manufactured by CRETOP based in China, which can provide charging electric connection for E-bikes. This CRETOP connector can plug in & out quickly, easy operation. Waterproof Motor Connector is motor three-phase wires & signal wires combination. You can plug with protective cover, much more safer. Our factory has passed the ISO9001 certification of TUV and UL, and our Waterproof Motor Connector also have CE and RoHs certificates that conform to the quality inspection and environmental protection of European and American countries. If you are looking for a reliable Waterproof Motor Connector manufacturer, please contact us, it will give you and me a pleasant start of cooperation!

Waterproof Motor Connector Specifications

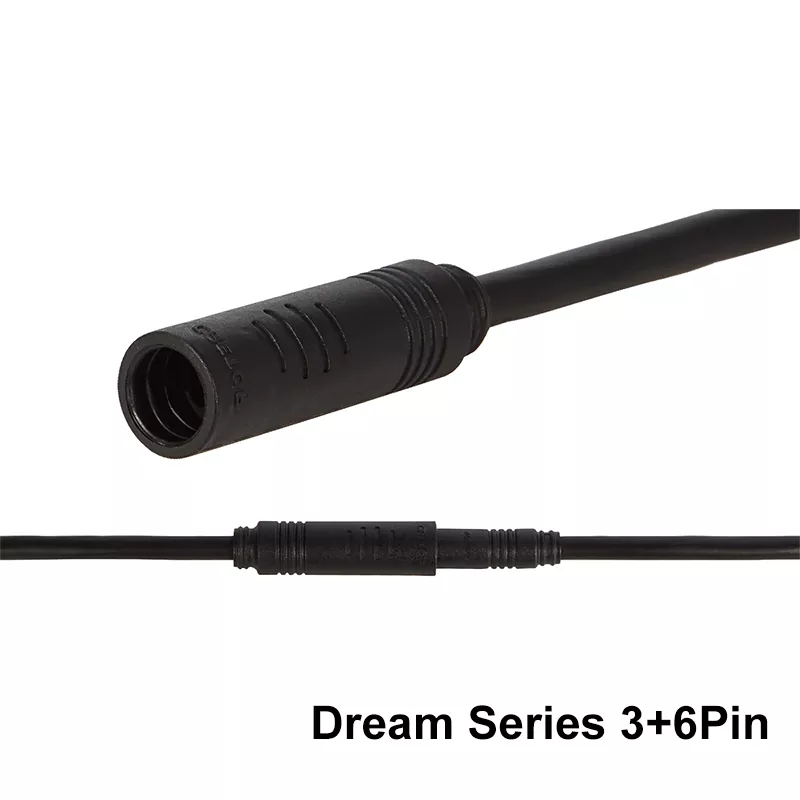

Model No.	Dream Series 3+6Pin
Mating Cycle	≥200 Times
Pullout Force	<90N
Wire processing	Weld
Rating Voltage	48V AC
Rating Current	15A
Peak Current	power18A 30S
Withstand Voltage	700V AC
Insulation Resistance	>20MΩ
Operating Temperature	-25°C~80°C
IP Rating	IP66 Mated
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	Nylon
Conductor	Copper Alloy, Gold Plated
Wire Gauge	Max316AWG/1.5mm² +6 26AWG/0.14mm²

Hot Tags: Waterproof Motor Connector, China, Made in china, Manufacturers, Suppliers, Factory, Wholesale, Customized, Brands, Quality, Low Price
